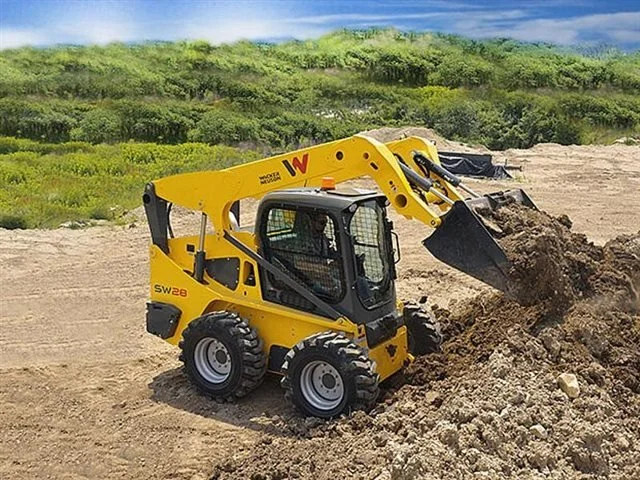

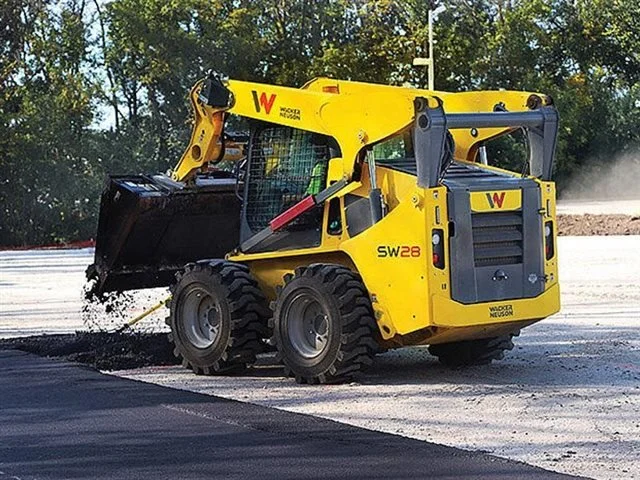

The Wacker Neuson SW28 is a vertical-lift skid-steer loader designed for demanding jobs across construction, landscaping, agriculture, and material-handling applications. It combines strong lifting capability, high hinge-pin height, and robust breakout forces with a comfortable, ergonomic operator environment. The SW28’s vertical lift design gives it excellent reach and roll-in height for truck loading and pallet work.
Operating weight: ~8,253 lb (~3,744 kg)
Height to top of ROPS: ~81.9–83.2 in (~2,080 mm)
Overall length with bucket: ~144–145.4 in (~3,662–3,694 mm)
Overall length without bucket: ~116–117.5 in (~2,942–2,985 mm)
Width over tires: ~70–71.9 in (~1,775–1,826 mm)
Ground clearance: ~9-9.5 in (~227–240 mm)
Wheelbase: ~45.8–49.9 in (~1,162–1,267 mm)
Max hinge-pin height: ~134.6–134.8 in (~3,420 mm)
Max dump height: ~107.1–107.8 in (~2,720–2,739 mm)
Machine type: Skid-steer loader (vertical lift)
Gross power: ~74 hp (~55 kW)
Rated Operating Capacity (50%): ~2,800 lb (~1,270 kg)
Tipping load: ~6,200 lb (~2,812 kg)
Max travel speed: ~11.2 mph (~18 km/h)
