The Norwood Kwik-Till HSD1600 is a heavy-duty high-speed tillage tool designed to quickly size crop residue, mix soil, and prepare a smooth seedbed in a single pass. Built for high-speed operation, the Kwik-Till allows farmers to efficiently manage residue while improving soil conditions for planting.
Each disc is mounted on an independent torsion suspension system that allows the machine to follow ground contours and absorb impacts from rocks or rough terrain. This provides consistent depth control and excellent residue flow, even at higher field speeds.
The HSD1600 is ideal for high-speed residue management, shallow tillage, and seedbed preparation, helping farmers improve soil warming, residue breakdown, and overall field productivity.
Key Features
• 16 ft working width
• 20" disc blades available in notched front and smooth rear configurations for aggressive residue sizing and soil mixing
• 10" staggered shank spacing creating 5" effective disc spacing for full soil coverage
• Independent rubber torsion suspension system allowing discs to follow ground contours and cushion impacts
• Single-point hydraulic depth control for quick and easy field adjustments
• Maintenance-free greaseless disc hubs for reduced maintenance and improved durability
• Heavy-duty modular folding frame with high-flotation tires for stability in the field
• Rubber roller finishing systems for improved soil leveling and seedbed finish
Specifications
• Working width: 16 ft
• Number of discs: approx. 38 discs depending on configuration
• Operating depth: approximately 2–6 inches
• Operating speed: typically 10–17 mph
• Approximate weight:13,700–15,600 lbs depending on finishing system
Typical Tractor Requirements
• Recommended tractor power: approximately 180–240 HP depending on soil conditions and tillage depth.
• General guideline: about 12–15 HP per foot of working width for high-speed disk operation.
Lot #305
The Norwood Kwik-Till HSD1600 is a heavy-duty high-speed tillage tool designed to quickly size crop residue, mix soil, and prepare a smooth seedbed in a single pass. Built for high-speed operation, the Kwik-Till allows farmers to efficiently manage residue while improving soil conditions for planting.
Each disc is mounted on an independent torsion suspension system that allows the machine to follow ground contours and absorb impacts from rocks or rough terrain. This provides consistent depth control and excellent residue flow, even at higher field speeds.
The HSD1600 is ideal for high-speed residue management, shallow tillage, and seedbed preparation, helping farmers improve soil warming, residue breakdown, and overall field productivity.
Key Features
• 16 ft working width
• 20" disc blades available in notched front and smooth rear configurations for aggressive residue sizing and soil mixing
• 10" staggered shank spacing creating 5" effective disc spacing for full soil coverage
• Independent rubber torsion suspension system allowing discs to follow ground contours and cushion impacts
• Single-point hydraulic depth control for quick and easy field adjustments
• Maintenance-free greaseless disc hubs for reduced maintenance and improved durability
• Heavy-duty modular folding frame with high-flotation tires for stability in the field
• Rubber roller finishing systems for improved soil leveling and seedbed finish
Specifications
• Working width: 16 ft
• Number of discs: approx. 38 discs depending on configuration
• Operating depth: approximately 2–6 inches
• Operating speed: typically 10–17 mph
• Approximate weight:13,700–15,600 lbs depending on finishing system
Typical Tractor Requirements
• Recommended tractor power: approximately 180–240 HP depending on soil conditions and tillage depth.
• General guideline: about 12–15 HP per foot of working width for high-speed disk operation.
Lot #305

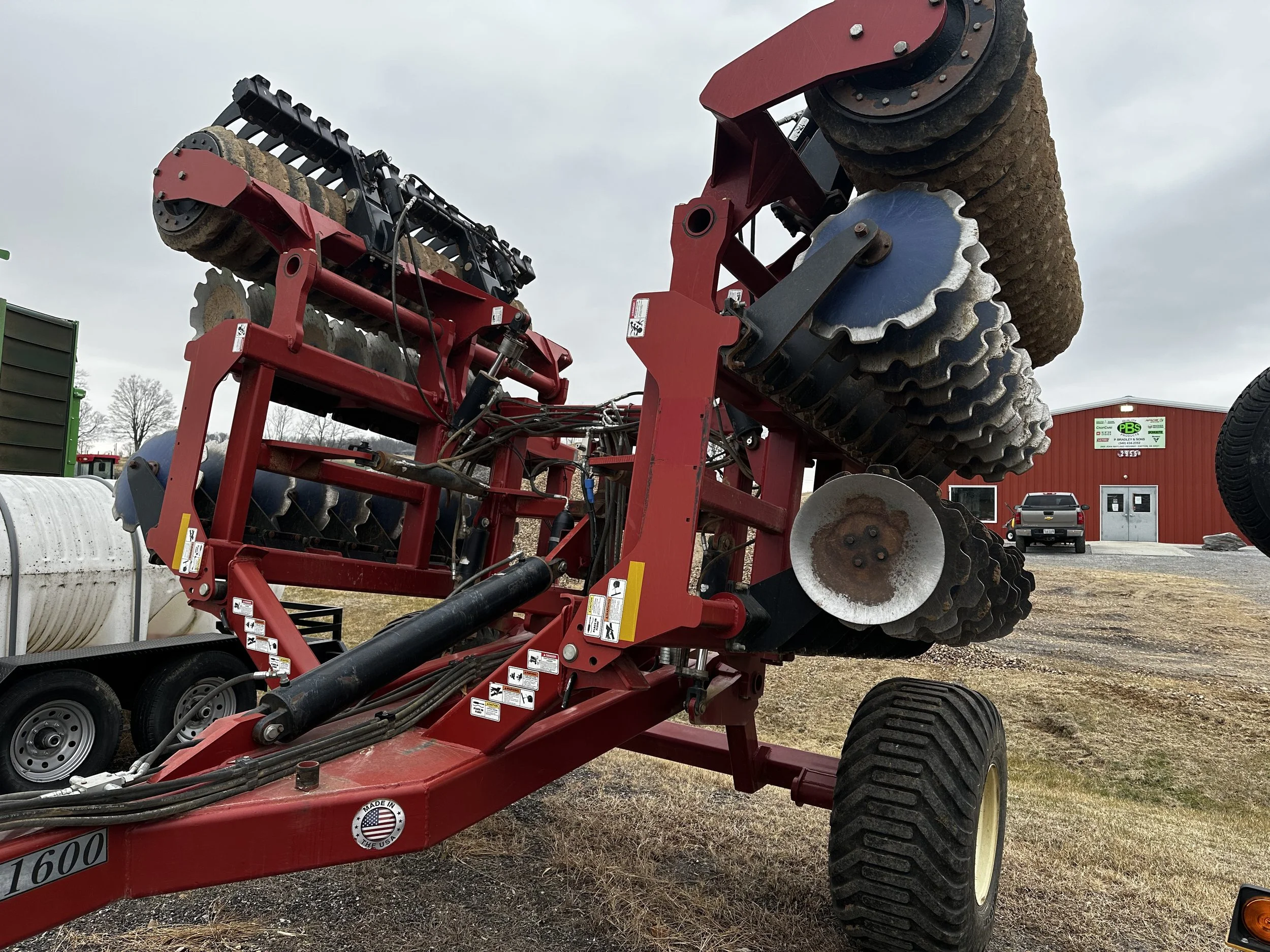

Image 1 of 5

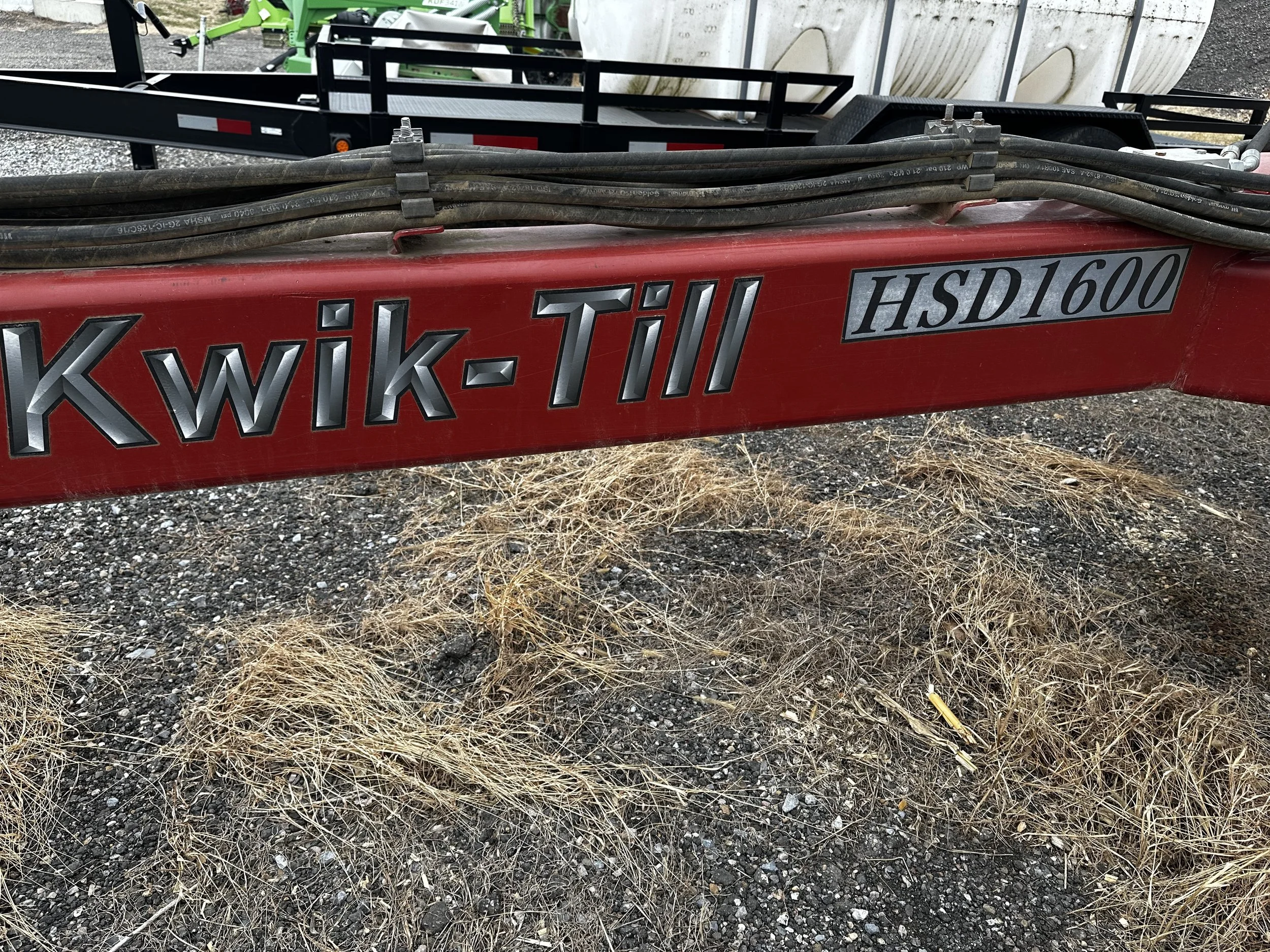

Image 2 of 5

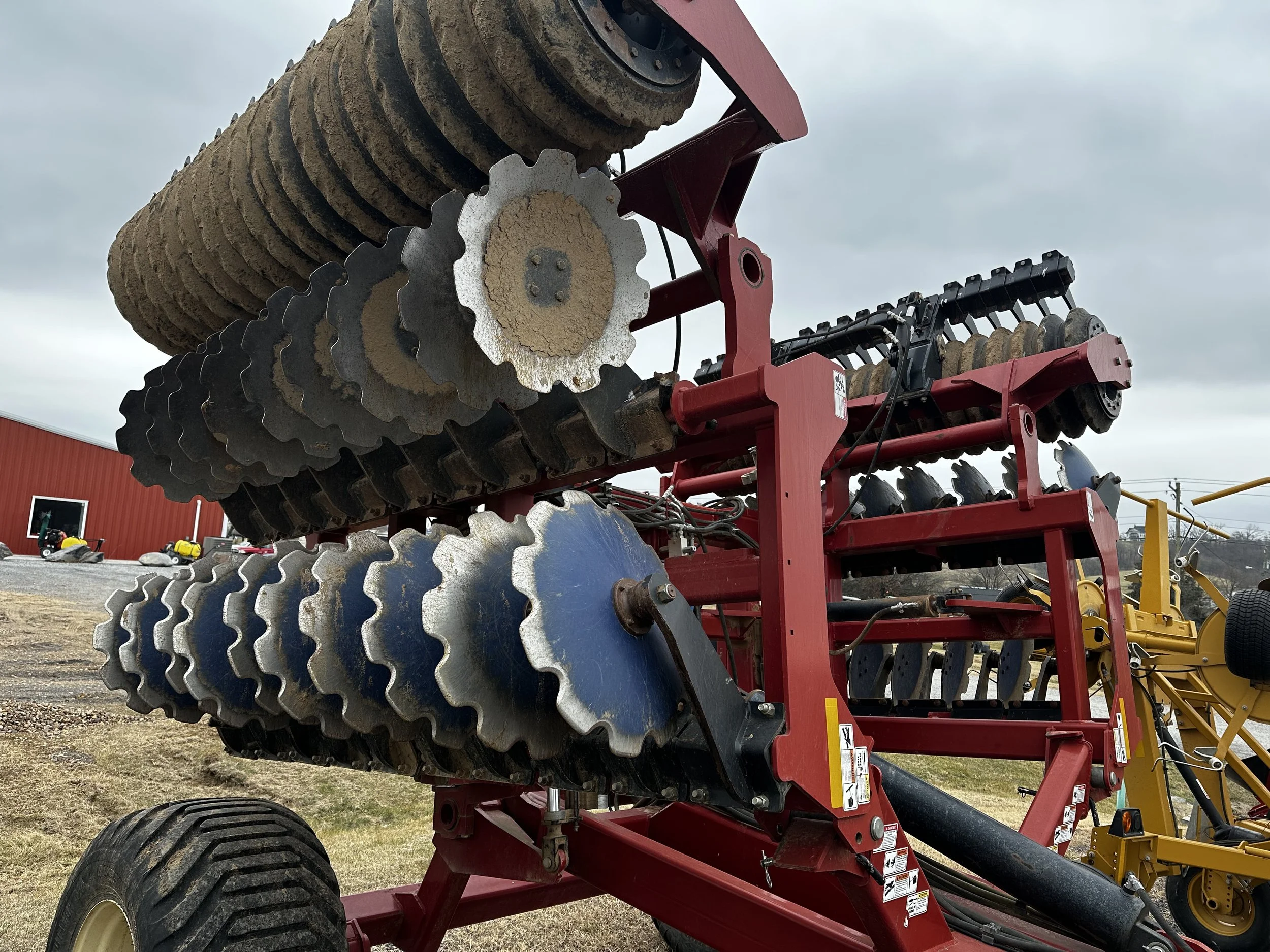

Image 3 of 5

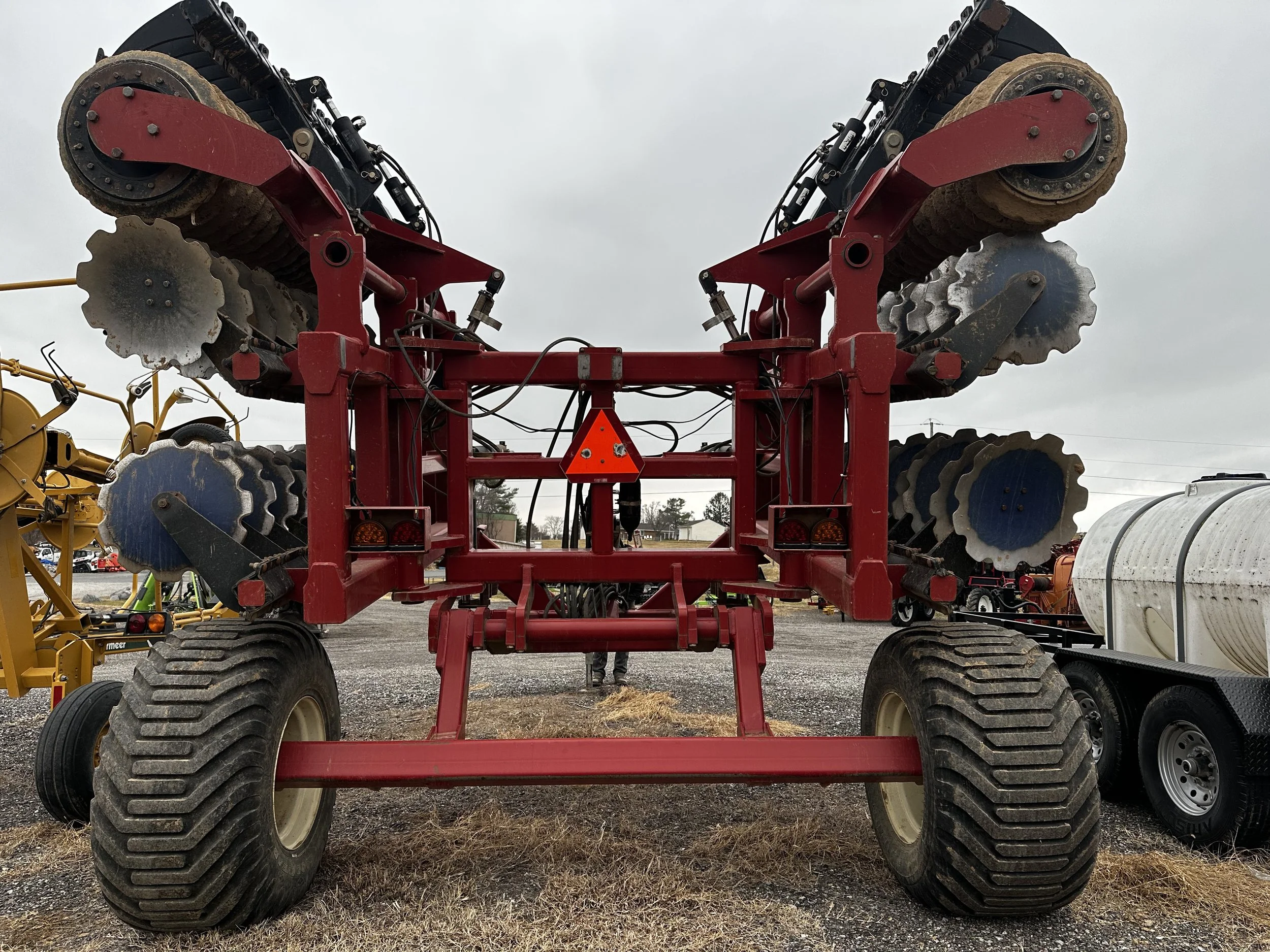

Image 4 of 5

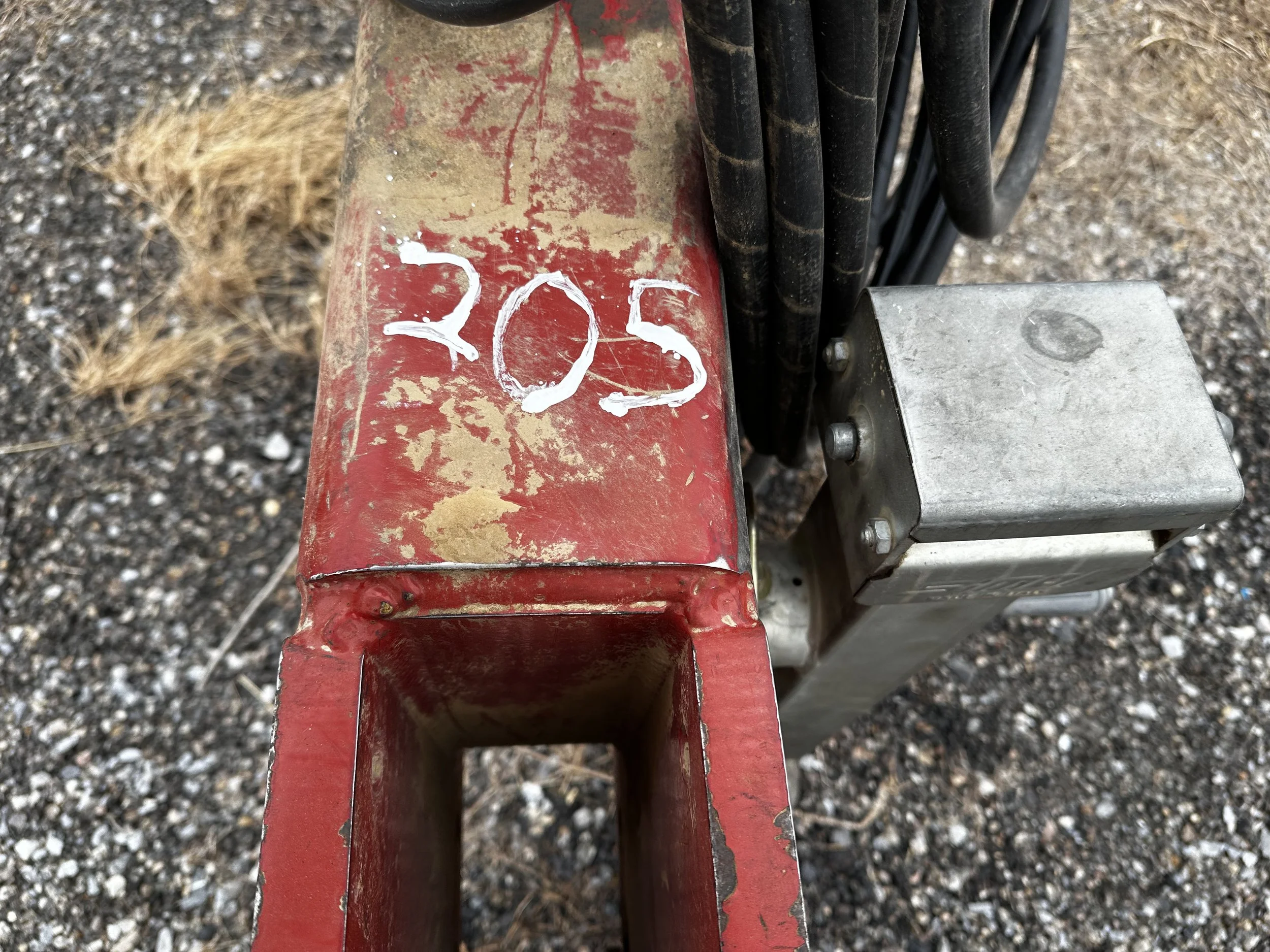

Image 5 of 5
